Eurorack compatible synthesizers

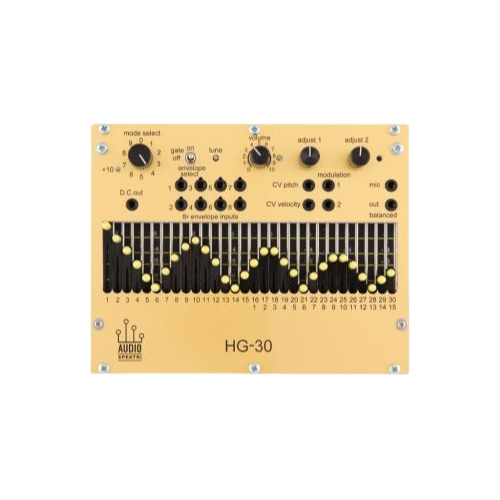

HG-30 has two families of synthesis modes: additive harmonic generator modes with various modulation methods (PM, FM, noise) and classical channel vocoder modes. The 30 optical potentiometers allow spectral control over a wide frequency range, and the 8 inputs for external envelope generators allow real time temporal control of the harmonics. The onboard “Virtual switchboard” connects any of the 8 envelope inputs to any of the harmonics.

The vocoder modes utilize the superior digital filter characteristics over legacy analog vocoders: it has 21 linear phase channel filters, each with order of 256 for accurate spectral analysis. The synthesis section is additive for low latency response. The typical analog vocoder problem of source pitch modulation of the synthesized voice is eliminated with very steep lowpass filters.

Price Of HG-30 (including VAT): 950€ + Shipping

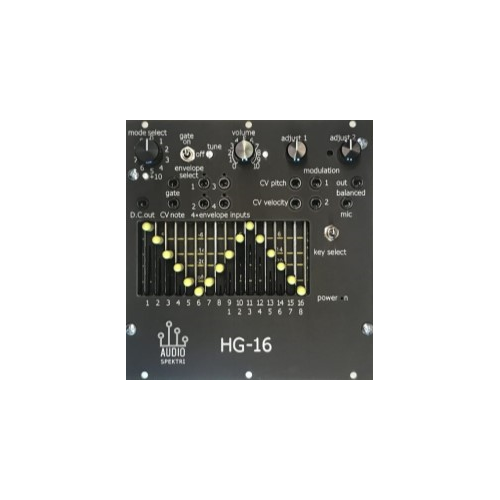

HG-16 is a lower cost version that has the same number of operating modes than HG-30. The 16 sliders limit the number of controllable harmonics in the harmonic generator modes and it has 4 envelope inputs. The vocoder modes are practically identical to the ones in HG-30.

Price Of HG-16 (including VAT): 720€ + Shipping

The list of operating modes for HG-30/HG-16:

  • 30/16 harmonics, global noise & PM modulation

  • 15/8 harmonics, individual noise & PM modulation

  • comb filtered noise, individual comb teeth amplitude control

  • 7 intervals x 15/8 harmonics

  • Pseudo-VCF with noise control

  • Pseudo-VCF with PM control

  • Chorus with 10/16 chorus members, each having maximum of 19/8 harmonic/non-harmonic overtones

  • 30/16 harmonics with two parameter noise control

  • 15/8 harmonics with individual two parameter noise control

  • Harmonic generator with built-in sequenced envelope generator

  • Frequency modulated harmonic generator.

  • Vocoder modes: single channel; single channel freeze spectrum/capture transient; two channel; two channel freeze spectrum/capture transient vocoder.



Dimensions and power consumption:

HG-30: 162.6x128.4mm (32HP); +5V, 200mA, +12V, 40mA, -12V, 40mA.

HG-16: 121.9x128.4mm (24HP); +5V, 200mA, +12V, 40mA, -12V 10mA.
